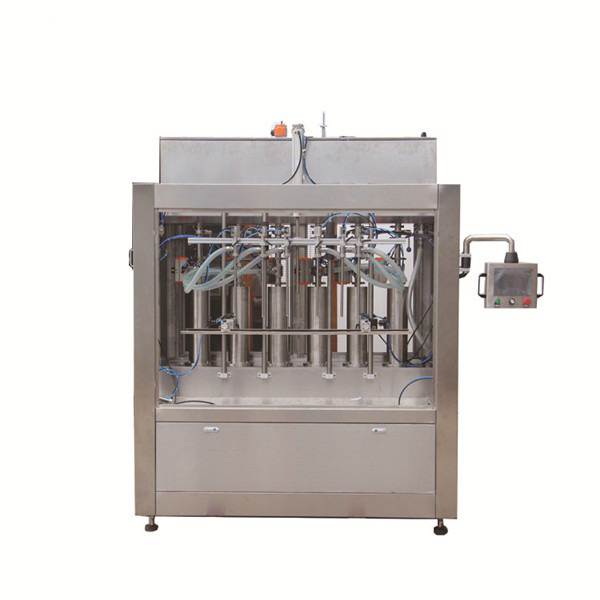

Abfüllmaschine für Geschirrspülmittel

A dishwashing liquid filling machine is a type of automated equipment that is designed to fill bottles or containers with dishwashing liquid. It typically uses a series of pumps, sensors, and nozzles to accurately measure and dispense the correct amount of dishwashing liquid into each container. These machines can be used in industrial or commercial settings to increase production efficiency and accuracy.

Spezifikationen

Spülmittel Füllmaschine
1. With CE Certificate,Meet the GMP
2. Material:304or316Stainless Steel
3. Pay:T/T,L/C

Beschreibung

CE der EU
ISO9001
Erfüllen Sie die Anforderungen von GMP
longlife of service, low mainteinance rate

Hauptfunktion

Die Maschine ist vorgerückte hochpräzise Füllmaschine, die das Flaschenzählen, das Füllen und den Mit einer Kappe bedeckenden Prozess automatisch abschließen kann.

Eigenschaften

1. Kompakt strukturiert, gut aussehend, einfach zu bedienen und hochautomatisiert.

2. Die mit dem Material in Berührung kommenden Teile bestehen aus Edelstahl und sind leicht zu reinigen.

3. Das Füllvolumen wird mit Folienventilen geregelt, um die Genauigkeit zu gewährleisten.

4. Schnelle und hochpräzise Füllventile gewährleisten keine Leckage.

5. Es ist mit einem hocheffektiven Kappenzuführsystem ausgestattet.

Sprachoption

Monitor language: English, Spanish, Arabic, Portuguese, Russian, Italian, French, Korean.

Hauptmerkmale:

1. Linear type piston filling machine special designed for sticky liquid,such as detergent, shampoo, lotion,lubricant oil,edible oil, etc. international advanced technology, already approved by well-known companies such as Bayer. High filling accuracy, simple structure, stable working, widely application. Counting of bottles inlet, qualitative filling, bottles outlet are done automatically.

2. Not only the whole 13 filling nozzles dosage can be rough adjusted, but also each single filling nozzles dosage can finely adjusted.

3. Kann viele Parameter auswendig lernen, die für verschiedene geänderte Spezifikationen hilfreich sind, alle füllende Dosierung kann durch Touch Screen justiert werden.

4. Liquid control for normal working liquid level control, sound and light alarm device, guarantee the liquid level at normal condition; also can achieved for inlet valve/pump control.

5. Material outlet joints all adopts quick-assembling type (clamp type), easily for clean. Sealing gaskets adopts fluorine rubber O-ring; sanitary connecting pipes.

6. With protection case, drip gutter, main materials are made of SS304, wetted parts are made of SS316L.

Technische hauptsächlichparameter

Artikel	Name	Technische Parameter
01	Maschinenabmessung (L * B * H)	2200 mm * 1400 mm * 2800 mm
02	Maschinengewicht	Über 1400 kg
03	Innendurchmesser der Behälteröffnung	≥ φ35mm
04	Geeigneter Behälter	1 Liter .2 Liter
05	Behälterhöhe	80-350mm
06	Energieversorgung	AC 380 V, 50 Hz
07	Leistung	5Kw
08	Füllgenauigkeit	≤ ± 1%
09	Luftquelle	0,6 MPa stabile und saubere Druckluft
11	Anzahl der Befüllstutzen	13
12	Förderhöhe	900 mm ± 50 mm
13	Kapazität	≤3200 flaschen / stunde (nehmen wasser als test)
14	Flasche in Vorschubrichtung	Von links nach rechts

Schnelle Details

Typ: Füllmaschine
Artikelzustand: Neu
Anwendung: Chemisch
Verpackungsart: Flaschen
Verpackungsmaterial: Holz
Automatische Note: Automatisch
Angetriebene Ausführung: Pneumatisch
Spannung: 220V
Leistung: 3KW
Herkunftsort: Shanghai. China (Festland)
Markenname: NPACK
Abmessung (L * B * H): 2200 mm * 1400 mm * 2800 mm
Gewicht: 1400
Zertifizierung: CE
After-Sales-Service zur Verfügung gestellt: Ingenieure zur Verfügung, um Maschinen in Übersee zu warten
Material: SS304
SPS: Panasonic
Touchscreen: Panasonic

Dishwashing liquid filling machines are specifically designed to package dishwashing liquids into various types of containers. These machines are essential for businesses in the cleaning industry who want to streamline their packaging process and increase their productivity. There are several types of dishwashing liquid filling machines available in the market, each with its unique features and benefits.

One of the most popular types of dishwashing liquid filling machines is the volumetric filler. This machine operates on the principle of displacement and uses a piston to fill the containers with the precise amount of liquid required. This type of machine is highly accurate and is suitable for packaging liquids with a constant viscosity.

Another type of dishwashing liquid filling machine is the gravity filler. This machine works on the principle of gravity and uses a funnel to fill the containers with the liquid. The liquid is then dispensed into the containers based on the height of the liquid in the funnel. This type of machine is ideal for packaging low viscosity liquids and is very cost-effective.

The third type of dishwashing liquid filling machine is the overflow filler. This machine works on the principle of overflow and uses a hopper to fill the containers with the liquid. The liquid is then dispensed into the containers based on the height of the liquid in the hopper. This type of machine is ideal for packaging high viscosity liquids and can handle liquids with large particles.

When choosing a dishwashing liquid filling machine, it is important to consider factors such as the size of your production line, the viscosity of the liquid, the type of containers you will be using, and the speed of production you require. It is also important to consider the ease of maintenance and the reliability of the machine.

In conclusion, a dishwashing liquid filling machine is a crucial investment for businesses in the cleaning industry. With the right machine, businesses can increase their productivity, improve the quality of their packaging, and save time and money. When choosing a dishwashing liquid filling machine, it is important to consider factors such as the size of your production line, the viscosity of the liquid, the type of containers you will be using, and the speed of production you require.

Spülmittel-Füllmaschine
