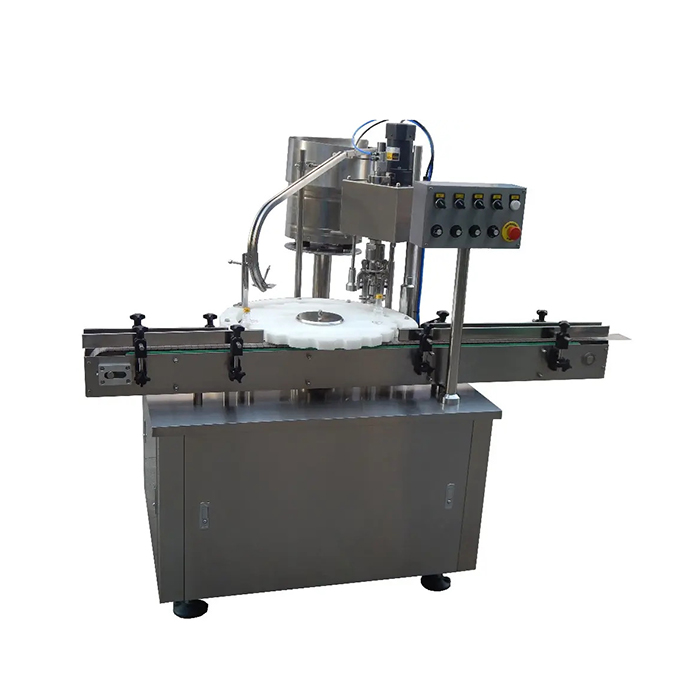

High-Speed-Milchflasche Rotary Capping Machine

Zuhause / Verschließmaschinen / Rotary Verschließmaschine / High-Speed-Milchflasche Rotary Capping Machine

High-Speed-Milchflasche Rotary Capping Machine

High-Speed-Milchflasche Rotary Capping Machine

Einführung


This automatic capping machine is suitable for round cap, spray/pump tightening, can work with existing filling line, Electrical control movement, strong stability; with positioning devices, standard Capping, easy to operate; wide capping range suitable for different shapes and sizes; resolved the difficult problem on nozzle cap, pump cap, spray pumps, spray gun in hand button capping; lock lid with adjustable speed can be adjusted according to different cap tightness.Widely used in detergent, shampoo, shower gel, hand cleaning gel, laundry detergent and many other daily chemical products

Charakteristisch


1, PLC controlled , integrated cap capping ( automatic cap sorting/cap feeding can be option)

2, automatische einlasskappe und flasche position einstellung und ausrichtung, einstellbare drehmomentregelung.

3, leichte Manipulation, kein Kratzer und Verletzung zu den Kappen und zu den Behältern

4, einfache Umstellungen, eine Linie, die zu einigen Produkten fähig ist

5, angeschlossen an Füllmaschine und Etikettiermaschine leicht

6, Modulstruktur, manipulieren auf dem Touch Screen, einfache Wartung

Spezifikation


NameHigh-Speed-Milchflasche Rotary Capping Machine
ModellWTPC-200
AnwendungPumpenkappe, Sprühkappe, Nadelkappe und normale runde Kappe
Produktion1800-2400 B / Stunde
Leistung220 V, 50 Hz, 0,7 kW
Kappendurchmesser20-40mm
Flaschenhöhe80-350mm
Zwirnkraft5-20Nm
 Gewicht300 kg
Abmessungen2000 * 1100 * 1550 mm

Schnelle Details


Typ: Verschließmaschine
Artikelzustand: Neu
Anwendung: bekleidung, getränke, chemische, rohstoffe, lebensmittel, maschinen und hardware, medizinische, textilien, pumpenkappe, spray kappe, nadelkappe und normale runde kappe
Angetriebene Art: Elektrisch
Automatische Note: Automatisch
Spannung: 220 V / 110 V
Leistung: 0,75 kW, 220 V / 110 V
Verpackungsart: Flaschen
Verpackungsmaterial: Glas, Kunststoff
Ursprungsort: Shanghai, China (Festland)
Markenname: NPACK
Abmessung (L * B * H): 2000 * 1100 * 1550 mm
Gewicht: 300 kg, 300 kg
Zertifizierung: ISO9001
After-Sales-Service zur Verfügung gestellt: Ingenieure zur Verfügung, um Maschinen in Übersee zu warten
Name: High-Speed-Milchflasche-Rotary-Verschließmaschine
Art: Hochgeschwindigkeitsmilch-Flaschen-Drehdeckel-Maschine
Funktion:
High-Speed-Milchflasche Rotary Capping Machine
Kappendurchmesser: 20-40mm
Flaschenhöhe: 80-350mm
Verdrehkraft: 5-20N.m
Abmessung: 2000 * 1100 * 1550 mm


  • Automatic press is set on the plug, gland, out of the bottle in an ideal automation machinery, can easily with other equipment linkage, realize full automation .
  • Simple operation,capping automatically PLC control,no bottle no capping, with high accuracy.
  • Magnetic torque screw capping,never in-gage,cap unscrewing torque adjustable.It does not hurt bottles and caps.
  • Automatic capping machine is mainly suitable for pharmaceutical, medical, food, chemical and other industries filling after tamponade, is a kind of, stability, strong commonality of equipment.
